Earthing Plates
This comprehensive GI Earth Electrode Set is engineered to provide a low-resistance path for fault currents, ensuring the safety of personnel and equipment by effectively dissipating electrical energy into the ground. The set is manufactured from high-quality, hot-dip galvanized iron (GI) for superior corrosion resistance and long-term durability in various soil conditions.
The complete package includes:
GI Plate Electrode (2' x 2'): A large, robust plate offering a substantial surface area for optimal contact with the earth, facilitating efficient dissipation of fault current.

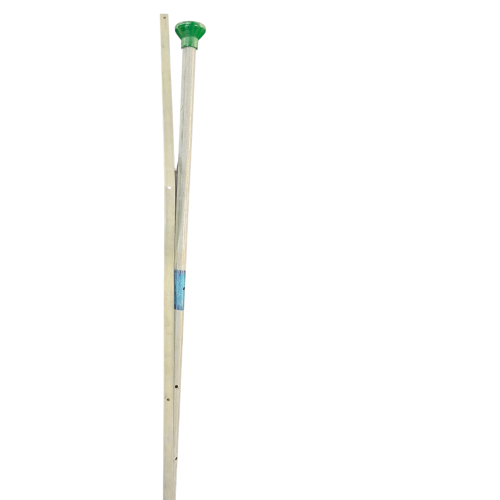

GI Pipe (1" Diameter x 6 Ft): Acts as the primary conduit for connecting the plate to the surface. The pipe is drilled with multiple holes to be filled with charcoal and salt, significantly reducing earth resistance.
GI Funnel: Attaches to the top of the pipe to simplify the periodic pouring of water and earth-enhancing compounds (like charcoal and salt), which are crucial for maintaining low soil resistivity, especially in dry conditions.
GI Strip (25mm x 6mm x 6 Ft): Used as the main earth conductor to run from the electrical system's earth pit to the electrode assembly, ensuring a continuous and reliable earthing connection.
Key Features & Benefits:
Complete Kit: Contains all necessary components for a standard earthing installation.
Corrosion Resistant: Hot-dip galvanized coating protects against rust, ensuring a long operational life.
Enhanced Safety: Effectively grounds electrical faults, protecting human life and valuable assets.
Complies with Standards: Manufactured as per standard earthing practices and electrical safety codes (IS 3043).
Robust Construction: Built to withstand physical stress and harsh underground environments.
Applications: Ideal for residential, commercial, and industrial electrical earthing systems, including power substations, telecommunications towers, and machinery grounding.
| COMPLETE EARTHING KIT | Contains 1 GI Plate (2' x 2'), 1 GI Pipe (1" dia, 2m long), 1 GI Funnel, and 1 GI Strip. Everything needed for a standard earthing installation. |
|---|---|
| PREMIUM GALVANIZED IRON | All components are hot-dip galvanized to provide excellent resistance against rust and corrosion, ensuring a long service life even in damp soil conditions. |
| ENHANCED SAFETY | Creates a low-resistance path to the ground, effectively preventing electrical shock hazards and protecting sensitive electronic equipment from damage due to fault currents. |
| EASY MAINTENANCE | The included funnel allows for easy topping up of charcoal and salt into the pipe, helping to maintain low earth resistance all year round. |
| VERSATILE APPLICATION | An essential safety product for earthing in homes, commercial buildings, industrial plants, transformer stations, and telecommunication installations. |
